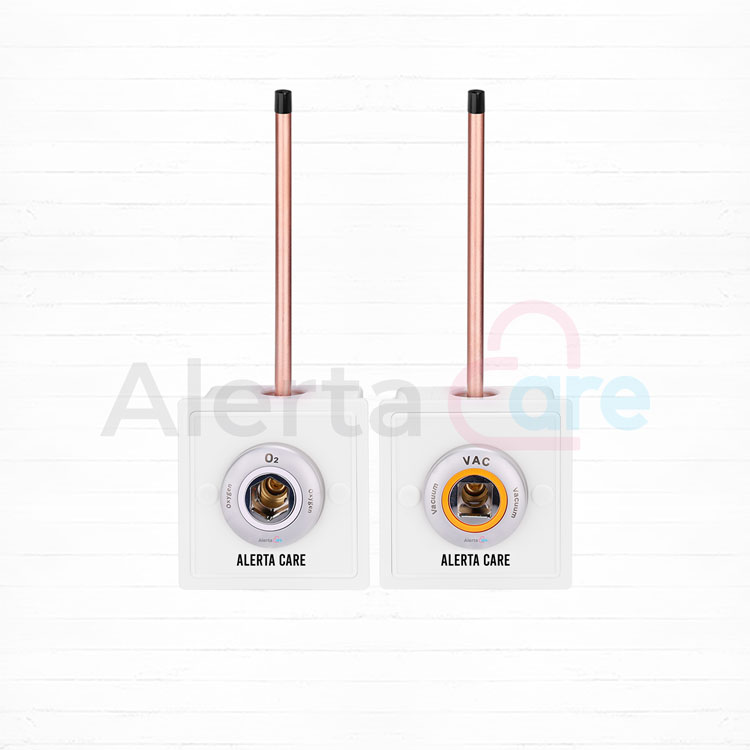

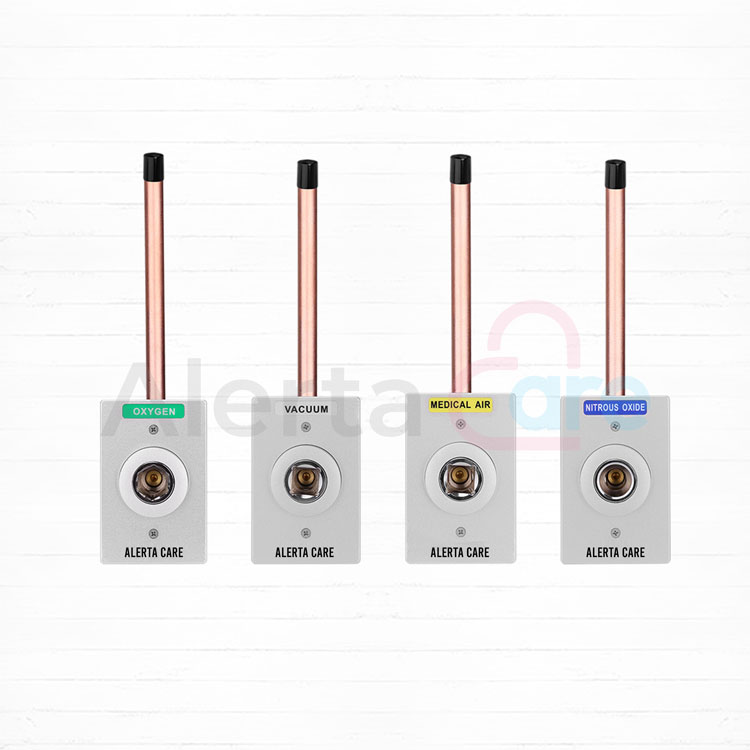

Medical Gas Outlet
AMERICAN STANDARD GAS OUTLET Ohmeda
- Compliant with NFPA99 and CGA standard
- Gas Type: O2, MEDICAL AIR, VAC, N2O, N2, CO2 are available Combination structure
- NFPA full color standard for easy gas identification
- 100% pressure and leakage tested
- 360°swivel on the inlet pipe for easy installation
- Available in wall type with box, console type on bedhead units and hose barb type
- Suitable ambient temperature: -20℃ to 60℃, ambient humidity: 10% to 95%
- The working pressure for oxygen, air (breathing), nitrous oxide, and carbon dioxide is 0.4MPa
- The working pressure for nitrogen and instrument air is 0.8MPa
- The negative pressure working pressure is -0.075MPa The maximum gas supply flow rate is more than 100L/min
- the maximum suction flow rate is more than 40L/min
GERMANY STANDARD GAS OUTLET
- Compliant with DIN13620-2 and IS09170-1 standard
- Gas Type: O2, MEDICAL AIR, VAC, N2O, N2, CO2 are available
- Available in wall type with box, console type on bedhead units and hose barb type
- Secondary isolating valve enables easy maintenance, without shutting down the pipeline system
- Color-coded for easy gas identification according to ISO32
- 100% pressure and leakage tested
- Second-pull-out design can prevent the user from accidentally pull out the probe
- 15000 times Swap Fatigue Test
- Suitable ambient temperature: -20℃ to 60℃, ambient humidity: 10% to 95%
- The working pressure for oxygen, air (breathing), nitrous oxide, and carbon dioxide is 0.4MPa
- The working pressure for nitrogen and instrument air is 0.8MPa
- The negative pressure working pressure is -0.075MPa
- The maximum gas supply flow rate is more than 100L/min; the maximum suction flow rate is more than 40L/min
JAPANESE STANDARD GAS OUTLET
- 100% pressure and leakage tested
- Gas Type: O2, MEDICAL AIR, VAC, N2O, N2, CO2 are available
- Compliant with JIS and CGA standard
- Color-coded according to JIS color Standard
- Available in wall type with box, console type on bedhead units and hose barb type
- Secondary isolating valve enables easy maintenance, without shutting down the pipeline system
- Suitable ambient temperature: -20℃ to 60℃, ambient humidity: 10% to 95%
- The working pressure for oxygen, air (breathing), nitrous oxide, and carbon dioxide is 0.4MPa
- The working pressure for nitrogen and instrument air is 0.8MPa
- The negative working pressure is -0.075MPa
- The maximum gas supply flow rate is more than 100L/min; the maximum suction flow rate is more than 40L/min
BRITISH STANDARD GAS OUTLET
- Compliant with BS EN 737-1:1998 standard
- Gas Type: O2 , MEDICAL AIR, VAC, N2 O, N2 , CO2 are available
- Available in wall type with box, console type on bedhead units and hose barb type
- 100% pressure and leakage tested
- Quick connections with no risk of gas cross-connection
- Color-coded according to ISO32
- Suitable ambient temperature: -20℃ to 60℃, ambient humidity: 10% to 95%
- The working pressure for oxygen, air (breathing), nitrous oxide, and carbon dioxide is 0.4MPa
- The working pressure for nitrogen and instrument air is 0.8MPa
- The negative pressure working pressure is -0.075MPa
- The maximum gas supply flow rate is more than 100L/min; the maximum suction flow rate is more than 40L/min
FRENCH STANDARD GAS OUTLET
- Compliant with NF EN737-1: 1998 standard
- Gas Type: O2 , MEDICAL AIR, VAC, N2 O, N2 , CO2 are available
- Available in wall type with box, console type on bedhead units and hose barb type
- 100% pressure and leakage tested
- Quick connections with no risk of gas cross-connection
- Color-coded according to ISO32
- Suitable ambient temperature: -20℃ to 60℃, ambient humidity: 10% to 95%
- The working pressure for oxygen, air (breathing), nitrous oxide, and carbon dioxide is 0.4MPa
- The working pressure for nitrogen and instrument air is 0.8MPa
- The negative pressure working pressure is -0.075MPa
- The maximum gas supply flow rate is more than 100L/min; the maximum suction flow rate is more than 40L/min
AUSTRALIAN STANDARD GAS OUTLET
- Gas Type: O2 , MEDICAL AIR, VAC, N2 O, N2 , CO2 are available
- Available in wall type with box, console type on bedhead units and hose barb type
- 100% pressure and leakage tested
- Quick connections with no risk of gas cross-connection
- Color-coded according to ISO32
- Suitable ambient temperature: -20℃ to 60℃, ambient humidity: 10% to 95%
- The working pressure for oxygen, air (breathing), nitrous oxide, and carbon dioxide is 0.4MPa
- The working pressure for nitrogen and instrument air is 0.8MPa
- The negative pressure working pressure is -0.075MPa
- The maximum gas supply flow rate is more than 100L/min; the maximum suction flow rate is more than 40L/min
