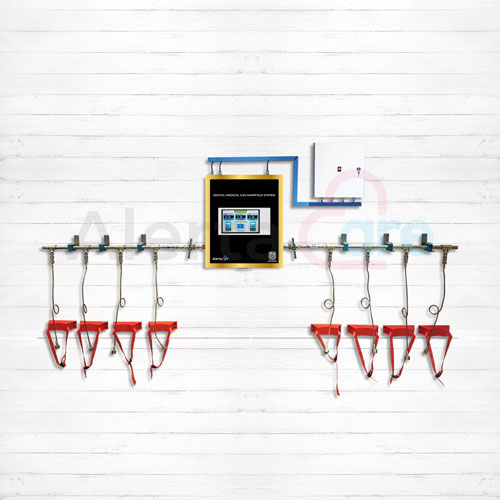

Medical Gas Manifold
LCD Medical Gas Manifold
- Input Pressure 0.8~15Mpa
- Output pressure 0.4~1.0Mpa (adjustable).
- Changeover flow >80m³/h
- Tube interface ribbed M33×2 (can be made on request).
- Switching pressure 0.6~1Mpa (configurable).
- Operating voltage AC24V
- Operating current 250mA
- The opening pressure of the safety valve 2.0Mpa
- Use the residual air pressure of the cylinder ＜0.8MPa
- Overall dimensions 600×500×200mm
LED Medical Gas Manifold
- Input Pressure 0.8~15Mpa
- Output pressure 0.4~1.0Mpa (adjustable).
- Changeover flow >60m³ /h
- Tube interface ribbed M33×2 (can be made on request).
- Switching pressure 0.6~1Mpa (configurable).
- Operating voltage AC24V
- Operating current 250mA
- The opening pressure of the safety valve 2.0Mpa
- Use the residual air pressure of the cylinder ＜0.8MPa
- Overall dimensions 600×500×200mm
