Medical Gas Alarm

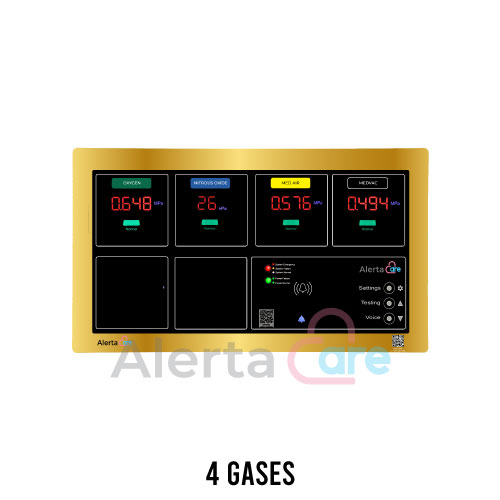

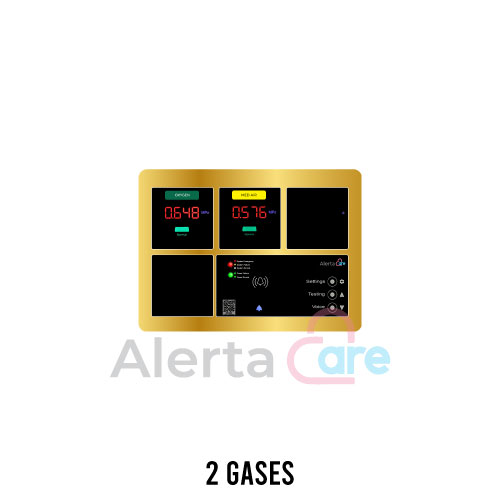

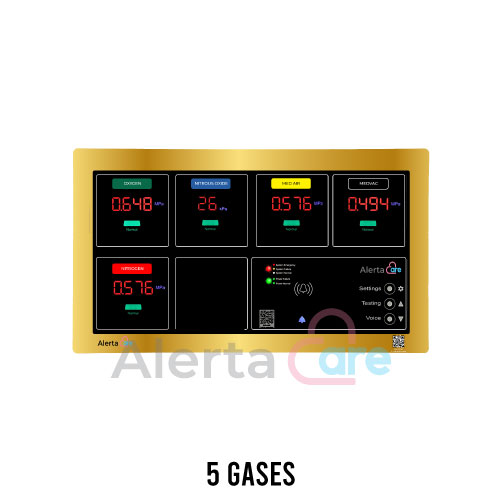

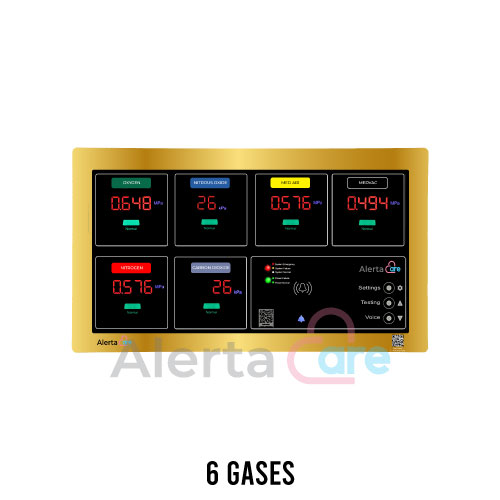

LCD Medical Gas Alarm
- 10.1 inch LCD touch screen
- Gas type and gas pressure etc monitoring
- Setting of gas type and high/low pressure valve is flexible by one button
- Infrared remote sensor makes operation(including mute) correct and easier
- Acrylic glass screen, concealed and unconcealed installation
- Audible and visual alarm
- Input power:AC100-240V, DC 9V + 5%
- Power consumption:10W
- Gas quantity:1- 6 gases
- Pressure range:-0.1MPa-1.0MPa
- Units:MPa, kPa, psi, inHg, bar, mmHg(customized)
- RS485 interface,can connect to PC
LED Medical Gas Alarm
- Glass panel, ultra thin box
- Touching mute button, can be mute at abnormal condition
- Pressure sensor acquire the gas pressure signal to achieve the 0.1 grade accuracy
- Audible and visual alarm
- Display pressure with 0.8 inch digital tube, clear and easy to read
- Using fast connection head for sensor, easy installation and maintenance
- Input power:AC100-240V, DC 9V + 5%
- Power consumption:2w(1gas), 3W(2gas), 4W(3gas), 5W(4gas), 6W(5gas)
- Gas quantity:1- 6 gases
- Pressure range:-0.1MPa-1.0MPa
- Units:MPa, kPa, psi, inHg, bar, mmHg(customized)
- RS485 interface, can connect to PC
