AC-Y151
European Style Cremation Machine
AC-Y151 European Style Cremation Machine

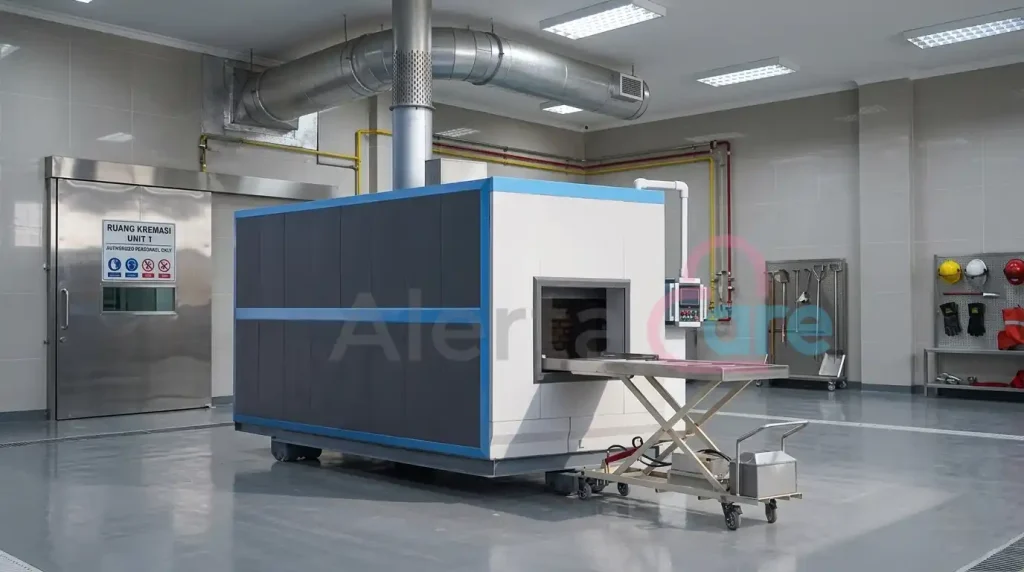

The AC-Y151 European- Style Cremation Machine AKA double-end cremator is our self-developed, plug-and-play human cremation device designed for convenience and efficiency. Unlike traditional cremation equipment that requires extensive on-site assembly, our machine can be easily transported to its designated location and made operational with minimal setup.
Alerta Care European Style Cremation Machine
Intellegent Cremation System
Remote Control Functional

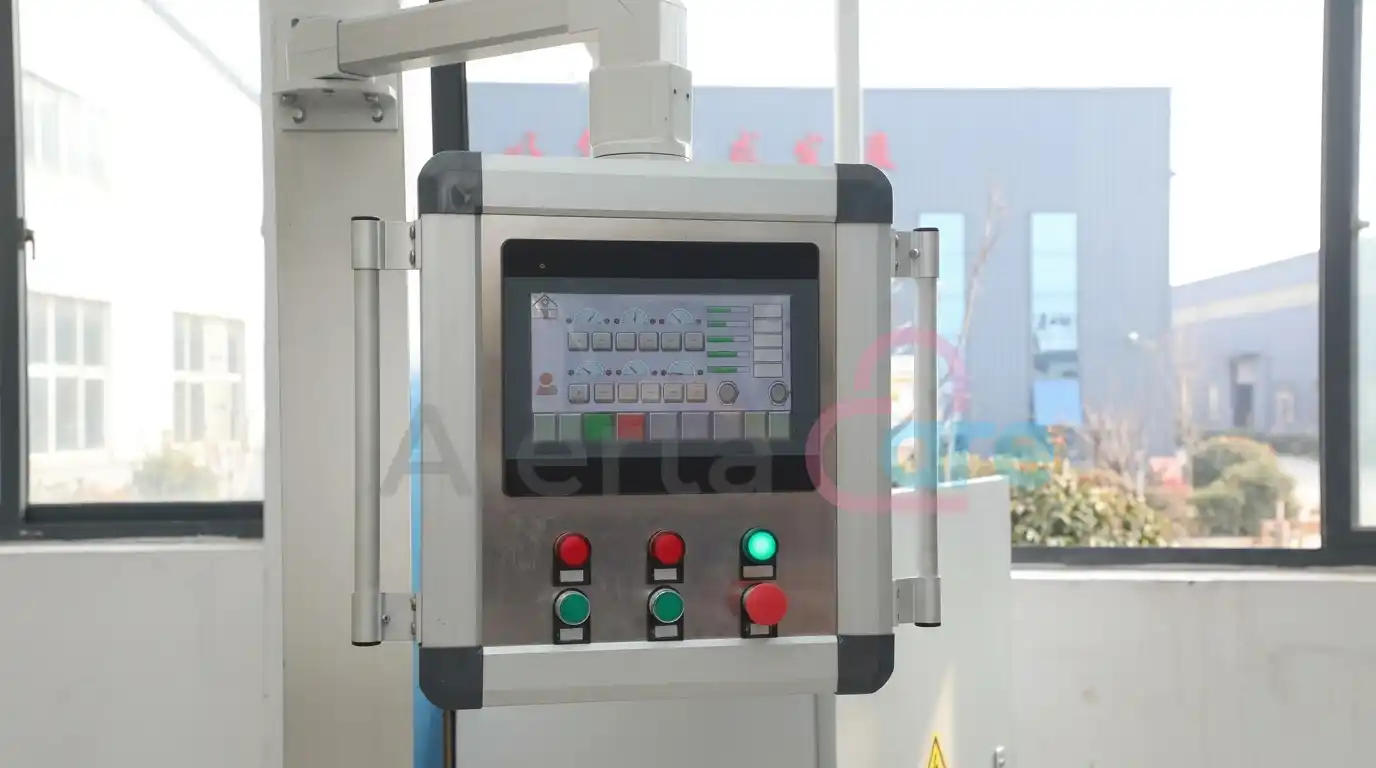

Our cremation machine features a touchscreen interface that allows for automated control of the operational process. Additionally, it can be upgraded to be controlled via our mobile app. To further enhance user convenience, we also ofer remote internet connectivity for system updates, checks, and maintenance for the equipment.
Digital Display System
The digital display system will show information related to the cremation process, including oxygen levels and duration of cremation, enabling staf to monitor the cremation process in real-time and intervene manually if necessary.
Structure and Material
This furnace model is an eficient combination type with a secondary combustion system. The main framework is made of Q235 steel, and the exterior is finished with high-temperature electrostatic spraying, customizable according to customer requirements. The furnace chamber is expertly constructed using T-3 refractory bricks and high-temperature adhesive
Movable Chamber Bed
Unlike conventional cremation machines that feature a fixed hearth bed, our system incorporates a movable hearth bed. This allows for seamless transportation of the body into the cremation chamber and enhances operational efficiency.
Where Compassion Meets Precision

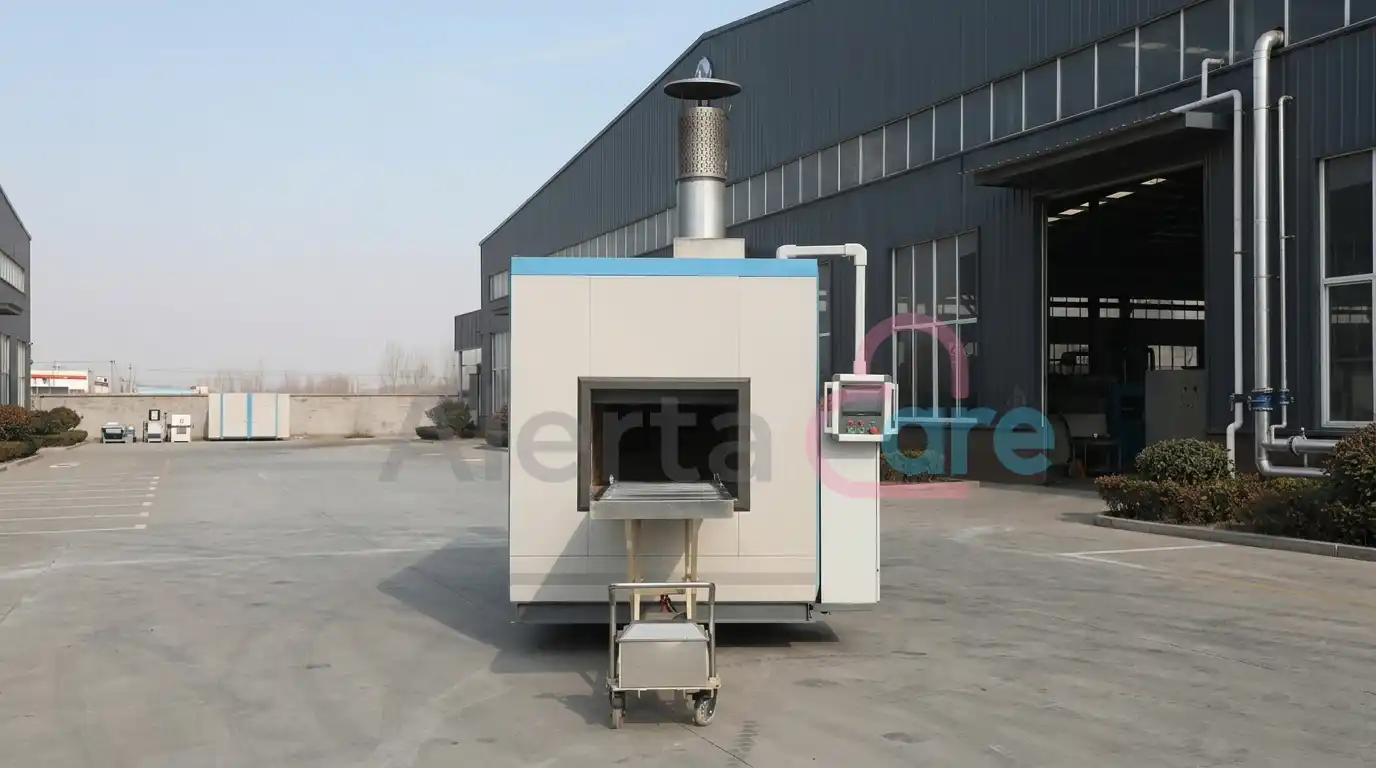

The AC-Y151 European-Style Cremation Machine AKA double-end cremator is our self-developed, plug-and-play human cremation device designed for convenience and efficiency. Unlike traditional cremation equipment that requires extensive on-site assembly, our machine can be easily transported to its designated location and made operational with minimal setup.
This cremator includes the electric body/coffin charging trolley, ensuring safety and efficiency in operations. If clients want automatic charging system, please contact us for customization options.
Theunique operating system makes it exrmely easy to operate the cremator and any filter system subsequently incorporated as well as automatic charging system. The cremation process can then start. these actions are stored in the PLC system and displayed on the touch- screen.Any adjustments in the parameters of the cremation process can easily be made using the same touch screen. We can also assist you remotely via a remote connection should any adjustments need to be made in the cremation process.
The extremely reliable continuous measurement of oxgen, temperatures and negative pressure
results in a constant process of cremation. As a result fuel consumption with the AC-Y151 is minimised making it extremely economical. The controlled cremation process keeps maintenance costs to a minimum.
The extremely reliable continuous measurement of oxgen, temperatures and negative pressure results in a constant process of cremation. As a result fuel consumption with the AC-J161 is minimised making it extremely economical. The controlled cremation process keeps maintenance costs to a minimum.

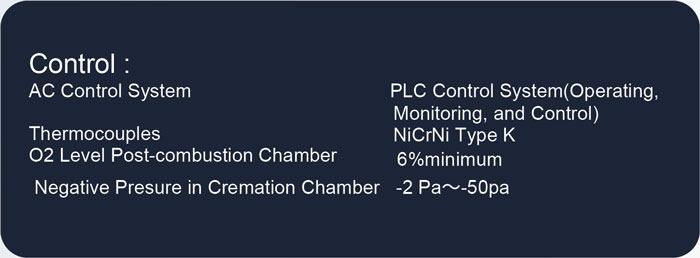

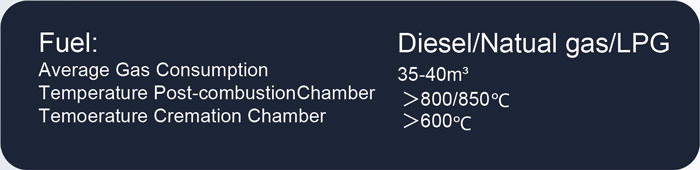

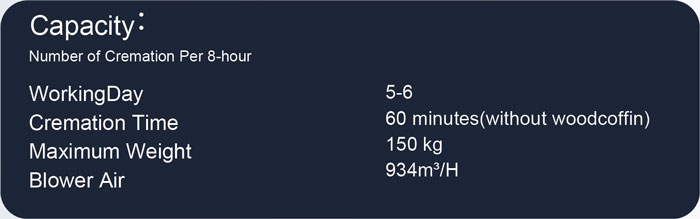

AC-P162 Technical Data
