Double-Sided Corridor Display Receiver AC-AF-600R

AC-AF-600R is a double-side Corridor Display for Alerta Care Wireless Nurse Call Systems, which is suitable for corridors in hospitals, assisted living facilities, nursing homes, and somewhere else.

It helps to quickly notify caregivers of the needs of patients. Easy to view by two sides LED display with ringtone alerts. This advanced technology promotes efficiency and enhanced care while helping to create a more pleasant environment in hospitals.

This wireless display receiver is suitable for use in many environments that need help, and can be wall or ceiling mounted for easy installation. It is available as a single or double-sided unit, showing 6-digits calling information from Alerta Care patient call bells.

Working Frequency433MHZ
Working Voltage12V DC
Working Current< 500MA
Sensitivity≤110dB
Audio Output2 W
Dimensions 750x 180 x 28mm


  • Double-Sided Corridor Display in hospitals for easy installation

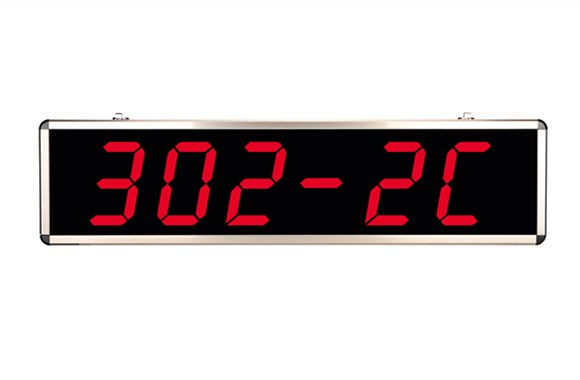

  • Display 6-digit numbers with “0-9”, “-“, “AbCdEF” letters

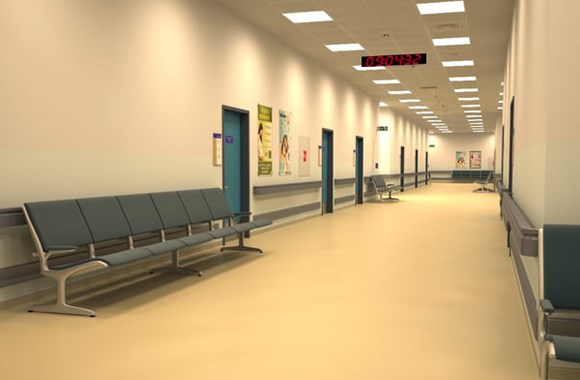

  • Display the current time when it is on standby
  • High-quality Aluminum housing to prevent rust
  • Work with 400pcs of Alerta Care call buttons and 32pcs remote control in max
  • Show the last 30 calls – rolling until the call is canceled
  • Can cancel callings via remote controls, cancel button or auto cancel

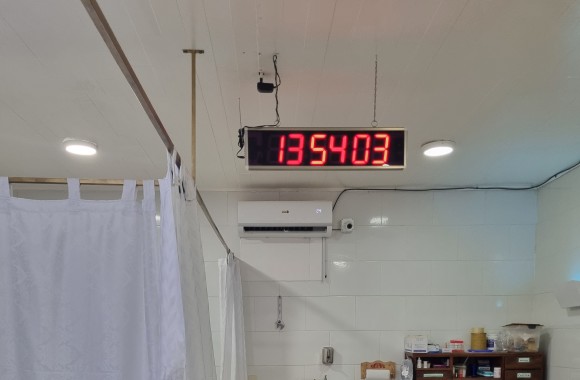

  • Wall or ceiling mounted for fast installation in hospitals without disturbing the patients
  • Adjustable ringtones and volume based on different locations
  • 1 set Corridor Display EC-600R includes 1pcs display and 1pcs power supply
