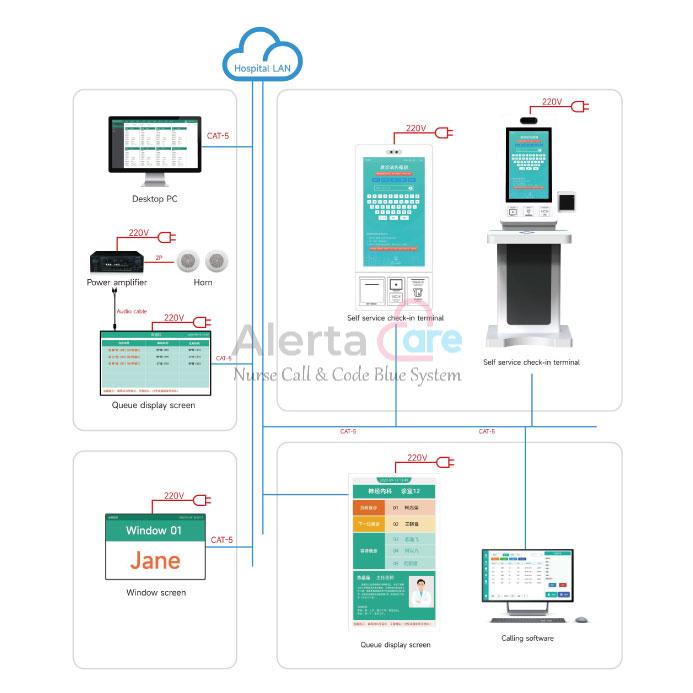

Queue Management System

Delivering innovative solutions designed to transform patient journeys and enhance the overall healthcare experience. Our solutions integrate seamlessly with Healthcare Information Systems (HIS) and existing infrastructures, simplifying patient flow, elevating operational efficiency, and promoting stress-free patient experiences.

Self-service Check-in Machine/ Kiosk

Vertical Self-service

Read More

Wall Mounted Self-service

Read More

LCD All-in-one Machine in Waiting Area

27 inch LCD

Read More

32 inch LCD

Read More

43 inch LCD

Read More

55 inch LCD

Read More

55 inch LCD Touch Screen

Read More

65 inch LCD

Read More

Integrated Screen At The Entrance Of The Consultation
Room All-in-one Screen At the Doctors’ Clinic Door

18.5-inch

Read More

21.5-inch

Read More

21.5-inch TouchScreen

Read More

13.3-inch

Read More
alertacare logo
Alertacare is a leading Healthcare supplier, specializing in distributing innovative, high quality products and solutions.

Official Distributor

  • PT. BERKAT CITRANI MITRA SEJATI
    Ruko Cluster Qizanara Pondok Gede
    Jl. Raya Jati Makmur No.13 RT. 007 RW. 011
    Kelurahan Jatimakmur
    Kecamatan Pondok Gede
    Kota Bekasi, Jawa Barat 17413
    Indonesia,
  • +62-21 852 11 563
  • +62 821-1015-8812
  • PT. GASINDO ANDALAN SUKSES
    Jl. Raya Serang KM. 28 No. 73, Cangkudu,
    Kab. Tangerang – Banten
  • +62-21 59450575

Pengunjung

Copyright © 2024 Alerta Care - All rights reserved.

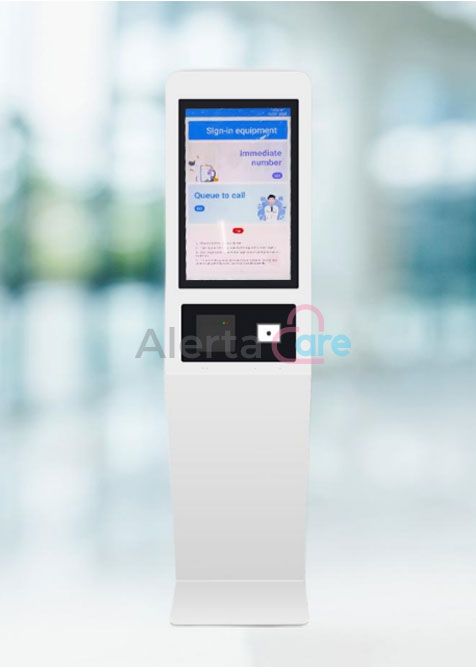

21.5 inch Vertical Self-service Check-inMachine

Model No: YLQD215-DP
Model Name: 21.5 inch Vertical Self-service Check-in Machine

  1. Display: 21.5-inch LED LCD TFT display, Vertical ScreenResolution: 1980*1020, brightness: 250cd/m², Contrast:1000:1
  2. Product Dimension:1600*380*440MM
  3. Operating System : Android 10
  4. Touch screen: 21.5-inch 10-point touch capacitive screen, touchresolution: 4096*4096, number of clicks: ≥50 million times, response time: less than 3ms.
  5. Printer:high-speed thermal printer, paper cutting method: automatic paper cutting, printing
    speed: 150mm/s, printing paper width: 58mm
  6. 6.CPU： Main chip quad core Cortex ™- A53 1.8GHz mainfrequencyMemory: 1GB Storage: 8GB
  7. QR code scanner: supports patient signing in by scanningcode
  8. Power supply: AC220V±10%, 50Hz±5%.
  9. Interface: RJ45*1、USB*1、 Power supply * 1, power switch*1
  10. Audio: 2 * 4W high fidelity speakers;
  11.  Key Features as below, effectively reduce waiting timesfor BookingandQueues.
    11.1. Self-service appointment booking: Patients can book appointmentsthemselves via using touchscreens.
    11.2. Self-service check-in: Patients can check in themselvesviausingtouchscreens, or scan the QR code on their appointment ticket toquicklyverify their identity.

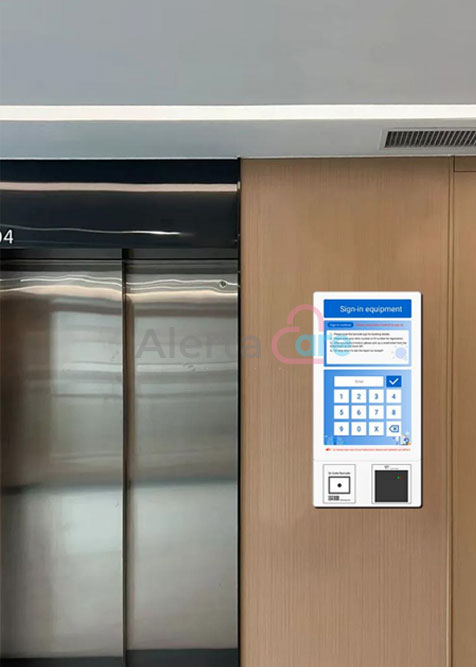

21.5-inch Wall Mounted Self-service Check-inMachine

Model No: YLQD215-BG-DP
Model Name: 21.5 inch Wall-mounted Self-service Check-inMachine

  1. Display: 21.5-inch LED LCD TFT display, portrait orientation, resolution:1980 x 1080, brightness: 250 cd/m², contrast ratio: 1000:1
  2. Product Dimension: 681.43*327.75*60.8mm
  3. Operating System : Android 10
  4. Touchscreen: 21.5-inch 10-point capacitive touchscreen, touchresolution:4096 x 4096, click count: ≥50 million, response time: less than3ms.
  5. Printer: High-speed thermal printer, paper cutting method: automaticpapercutting, print speed: 150mm/s, print paper width: 58mm
  6. QR code scanner: Supports patient QR code check-in
  7. CPU: Main chip: Quad-core Cortex™-A53, 1.8GHz clock speed;
    Memory: 1GB; Storage: 8GB;
  8. Interfaces: Audio interface ×1, SD ×1, USB ×1, DIPswitch×1, Serial port×1,485 interface ×1, RJ45 ×1
  9. Electrical parameters: AC 220V ±10%, 50Hz ±5%.
  10. Audio: 2x4W high-fidelity speakers;
  11. . Key Features as below, effectively reduce waiting times for BookingandQueues.
    11.1. Self-service appointment booking: Patients can book appointmentsthemselves via using touchscreens.
    11.2. Self-service check-in: Patients can check in themselvesviausingtouchscreens, or scan the QR code on their appointment ticket toquicklyverifytheir identity.

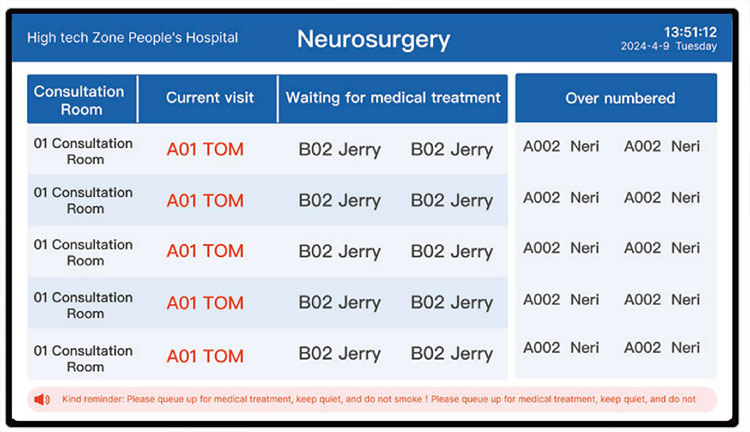

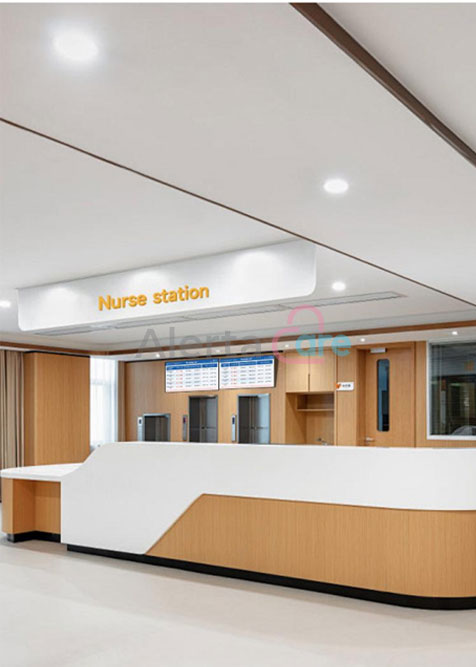

27 inch LCD All-in-one Machine in WaitingArea

Model No:YLZQ27
Model Name: 27 inch LCD All-in-one Machine in Waiting Area

  1. Screen size: 27 inches
  2. Product Dimension: L655 * W393 * H49mm
  3. Operating System : Android 9.0
  4. Installation location: Waiting area
  5. DDR: 1GB; EMMC: 8GB;
  6. Resolution: 1920 x 1080PX
  7. Real-time transmission of waiting queue information: Real-timedatatransmission via local area network
  8. Information display: The home page displays the current department,patients currently being called, waiting queue, overdue queue, andfriendlyreminders.
  9. Background switching: The backend supports flexible backgroundcolorswitching according to scene requirements.

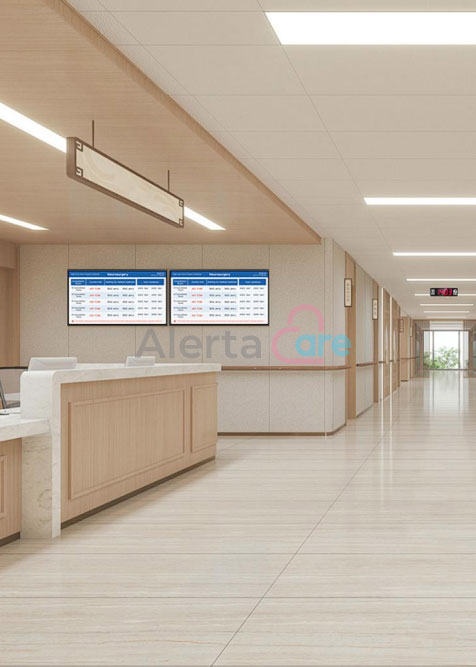

32 inch LCD All-in-one Machine in WaitingArea

Model No:YLZQ32
Model Name: 32 inch LCD All-in-one Machine in Waiting Area

  1. Screen size: 32 inches
  2. Product Dimension: 731 *426 * 43mm
  3. Operating System : Android 9.0
  4. Installation location: Waiting area
  5. Standard: DDR: 1GB; EMMC: 8GB;
    Optional: 2GB; EMMC: 16 /32GB; ( additional cost requested)
  6. Resolution: 1920*1080 PX
  7. Real-time transmission of waiting queue information: Real-timedatatransmission via local area network
  8. Information display: The home page displays the current department,patients currently being called, waiting queue, overdue queue, andfriendlyreminders.
  9. Background switching: The backend supports flexible backgroundcolorswitching according

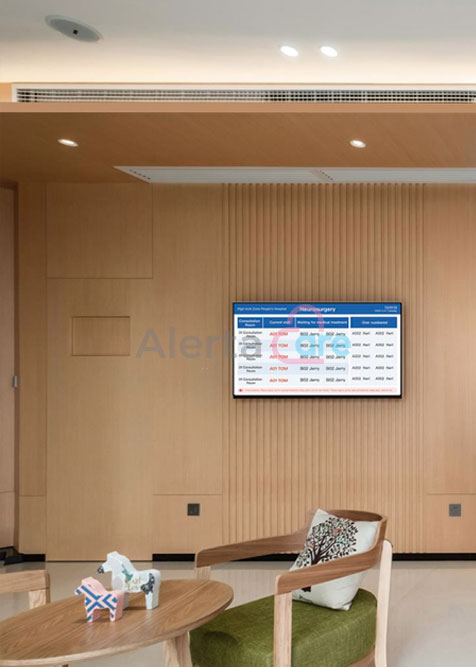

43 inch LCD All-in-one Machine in WaitingArea

Model No:YLZQ43
Model Name: 43 inch LCD All-in-one Machine in Waiting Area

  1. Screen size: 43 inches
  2. Product Dimension: 973.5*561*43.3mm
  3. Operating System : Android 9.0
  4. Installation location: Waiting area
  5. Standard: DDR: 1GB; EMMC: 8GB;
    Optional: 2GB; EMMC: 16 /32GB; ( additional cost requested)
  6. Resolution: 1920*1080 PX
  7. Real-time transmission of waiting queue information: Real-timedatatransmission via local area network
  8. Information display: The home page displays the current department,patients currently being called, waiting queue, overdue queue, andfriendlyreminders.
  9. Background switching: The backend supports flexible backgroundcolorswitching according to scene requirements.

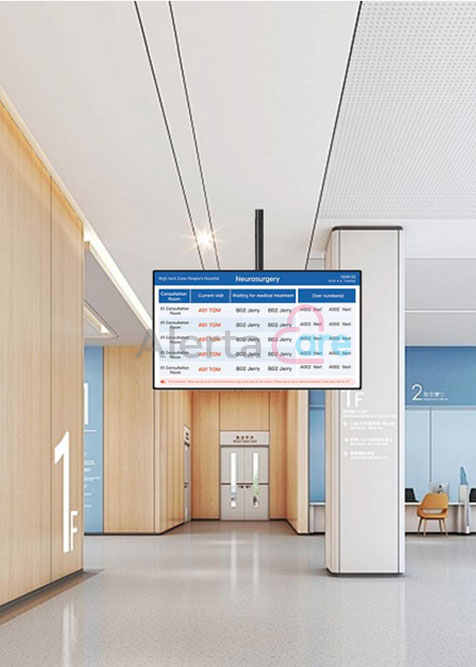

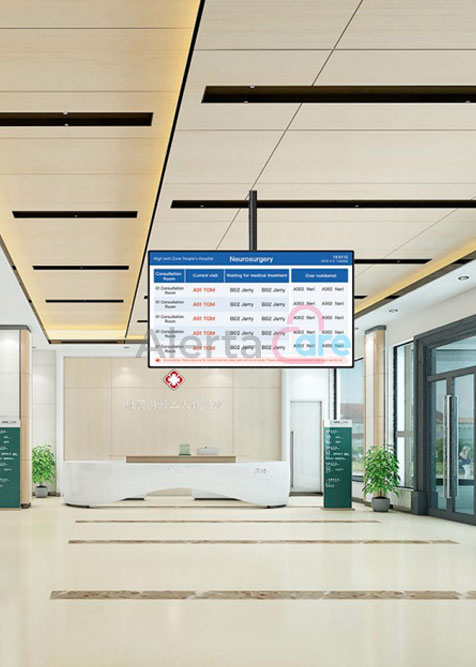

55 inch LCD All-in-one Machine in Waiting Area

Model No:YLZQ55
Model Name: 55 inch LCD All-in-one Machine in Waiting Area

  1. Screen size: 55 inches
  2. . Product Dimension: 1242.6*713.6*43.3mm
  3. Operating System : Android 9.0
  4. Installation location: Waiting area
  5. Standard: DDR: 1GB; EMMC: 8GB;
    Optional: 2GB; EMMC: 16 /32GB; ( additional cost requested)
  6. Resolution: 1920*1080 PX
  7. Real-time transmission of waiting queue information: Real-timedatatransmission via local area network
  8. Information display: The home page displays the current department,patients currently being called, waiting queue, overdue queue, andfriendlyreminders.
  9. Background switching: The backend supports flexible backgroundcolorswitching according

55 inch LCD Touch Screen All-in-one Machine in Waiting Area

Model No:YLZQ55-CP
Model Name: 55 inch LCD All-in-one Machine in Waiting Area

  1. Screen size: 55 inches 1209.6(W)×680.4(H) mm
  2. Product Dimension: 1242.6*713.6*43.3mm
  3. Operating System : Android 12.0
  4. Installation location: Waiting area
  5. Standard:DDR: 2GB; EMMC: 16GB
    Optional: DDR:2GB; EMMC: 32GB; ( additional cost requested)
  6. Resolution: 3840*2160
  7. Real-time transmission of waiting queue information: Real-timedatatransmission via local area network
  8. Information display: The home page displays the current department,patients currently being called, waiting queue, overdue queue, andfriendlyreminders.
  9. Background switching: The backend supports flexible backgroundcolorswitching according

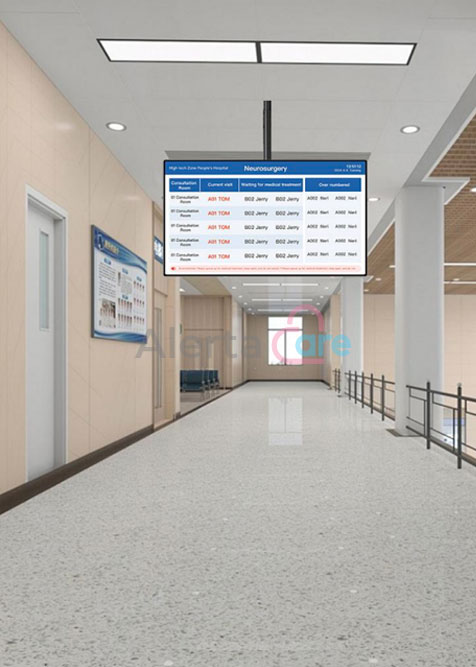

65 inch LCD All-in-one Machine in Waiting Area

Model No:YLZQ65
Model Name: 65 inch LCD All-in-one Machine in Waiting Area

  1. Screen size: 65 inches
  2. . Product Dimension: 1461.3*835.6*43.5mm
  3. Operating System : Android 9.0
  4. Installation location: Waiting area
  5. Standard: DDR: 1GB; EMMC: 8GB;
    Optional: 2GB; EMMC: 16 /32GB; ( additional cost requested)
  6. Resolution: 1920*1080 PX
  7. Real-time transmission of waiting queue information: Real-timedatatransmission via local area network
  8. Information display: The home page displays the current department,patients currently being called, waiting queue, overdue queue, andfriendlyreminders.
  9. Background switching: The backend supports flexible backgroundcolorswitching according

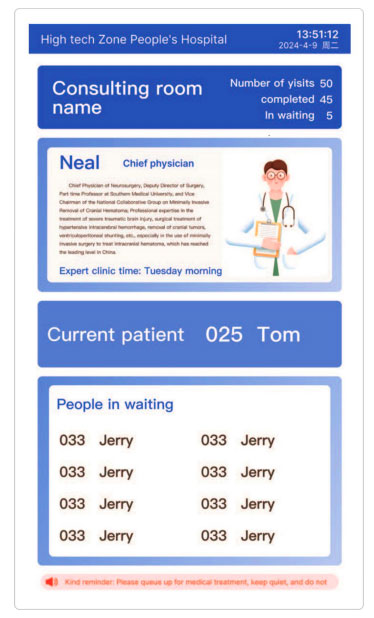

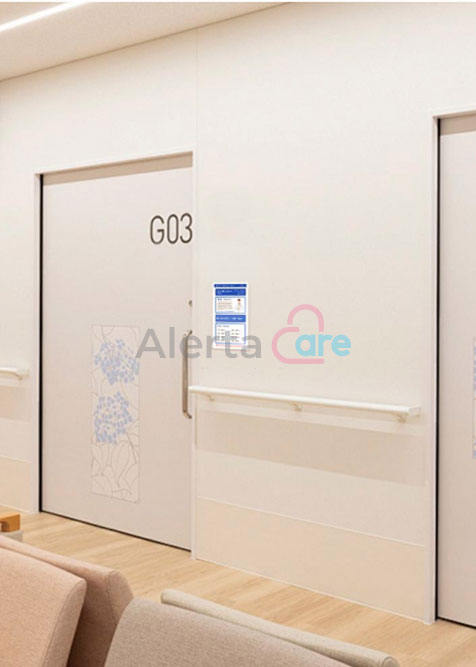

18.5-inch All-in-one Screen At the Doctors’ Clinic Door

Model No: YLCS185
Model Name: 18.5-inch All-in-one Screen At the Doctors’ Clinic Door

  1. Screen Type: 18.5-inch TFT-LCD (LED)
  2. Product Dimension: 439.80*260.4*32mm
  3. Operating System: Android 10
  4. Screen Resolution: 1920px × 1080px
  5. Effective Display Area: 408.96mm (H) × 230.04mm (V)
  6. Brightness: 300 nits (Typ)
    Contrast Ratio: 1200:1 (Typ)
    Response Time: 14ms (Typ)
    Color Gamut: NTSC 72% (Typ)
  7. Network Support: Ethernet 10-100Mbps Auto-Adaptive
  8. CPU: Quad-core Cortex™-A53, 1.8GHz clock speed
    Memory Low-power, LPDDR4 1GB, EMMC 8GB
  9. Audio Line-out, supports external amplifier
  10. Communication Protocols TCP, UDP, RTP, ARP, IGMP, HTTP, SIPInterfaces: Audio interface x1, RJ45 x1, SD card x1, UART x1, USBx1, reservedpowerx1,485 x1, power x1, power switch x1, DIP switch x1, control interface x1
  11. Operating voltage: AC 220V
  12. Installation method: Wall-mounted

21.5-inch All-in-one Screen At the Doctors’ Clinic Door

Model No: YLCS215S
Model Name: 21.5-inch All-in-one Screen At the Doctors’ Clinic Door

  1. Screen type 21.5-inch TFT-LCD (LED)
  2. Product Dimension: 503.76*298.11*32mm
  3. Operating System: Android 10
  4. Screen Resolution: 1920px × 1080px
  5. Effective display range 476.64mm (H) x 268.11mm (V)
  6. Brightness: 300 nits (Typ)
    Contrast ratio 3000:1 (Typ)
    Response Time: 7ms (Typ)
    Color Gamut: NTSC 72% (Typ)
  7. Network Support: Ethernet 10-100Mbps Auto-Adaptive
  8. CPU: Quad-core Cortex™-A53, 1.8GHz clock speed
    Memory Low-power, LPDDR4 1GB, EMMC 8GB
  9. Audio Line-out, supports external amplifier

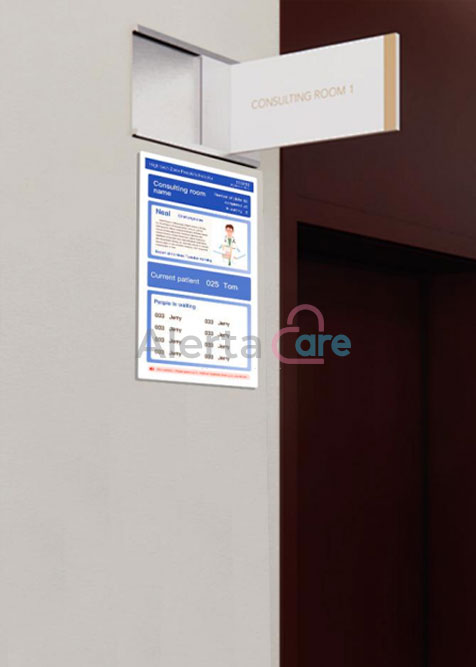

21.5-inch All-in-one Screen At the Doctors’ Clinic Door (TouchScreen）

Model No: YLCS215-CM
Model Name: 21.5-inch All-in-one Screen At the Doctors’ Clinic Door (TouchScreen）

  1. Screen type 21.5 inches, TFT-LCD（LED）
  2. Product Dimension: 511.2*307.8*32mm
  3. Operating System: Android 10
  4. Screen Resolution: 1920px × 1080px
  5. Effective display range 476.64mm (H) x 268.11mm (V)
  6. Brightness: 300 nits (Typ)
    Contrast ratio 3000:1 (Typ)
    Response Time: 7ms (Typ)
    Color Gamut: NTSC 72% (Typ)
  7. Network Support: Ethernet 10-100Mbps Auto-Adaptive
  8. CPU: Quad-core Cortex™-A53, 1.8GHz clock speed
    Memory Low-power, LPDDR4 1GB, EMMC 8GB
  9. Audio Line-out, supports external amplifier

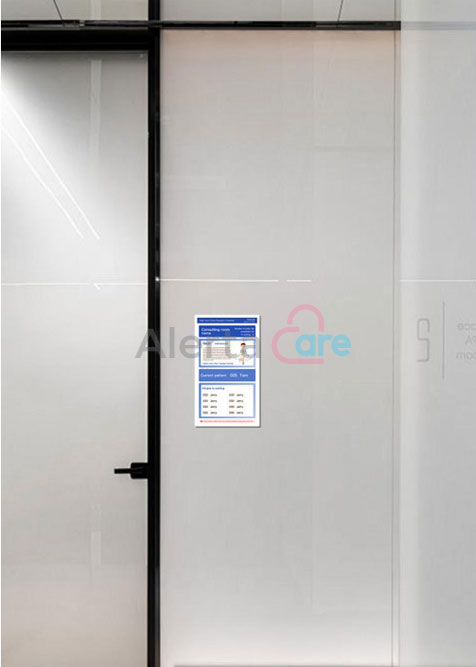

13.3-inch All-in-one Screen At the Doctors’ Clinic Door

Model No: YLCS133S
Model Name: 13.3-inch All-in-one Screen At the Doctors’ Clinic Door

  1. Screen type 13.3-inch
  2. Product Dimension: 323*197*17mm
  3. Operating System: Android 10
  4. Screen Resolution: 1920px × 1080px
  5. Main Chip Quad-core Cortex™-A53 1.8 GHz clock speed
  6. Memory 1 GB Storage 8 GB
  7. Bluetooth 4.0 or higher (optional,additional cost requested)
    WiFi Supports 2.4 GHz band (optional,additional cost requested)
  8. Screen Brightness 350 cd/m², Screen Ratio: 16:9
  9. Network: 10-100 Mbps adaptive
  10. Communication Protocols: TCP, UDP, RTP, ARP, IGMP, HTTP, SIPInterfaces: Alarm Input x4, RJ45 x1, 485 Interface x1, Power Interface x1, Reset Buttonx1,Serial Port x1
  11. Installation Method: Wall-mounted
